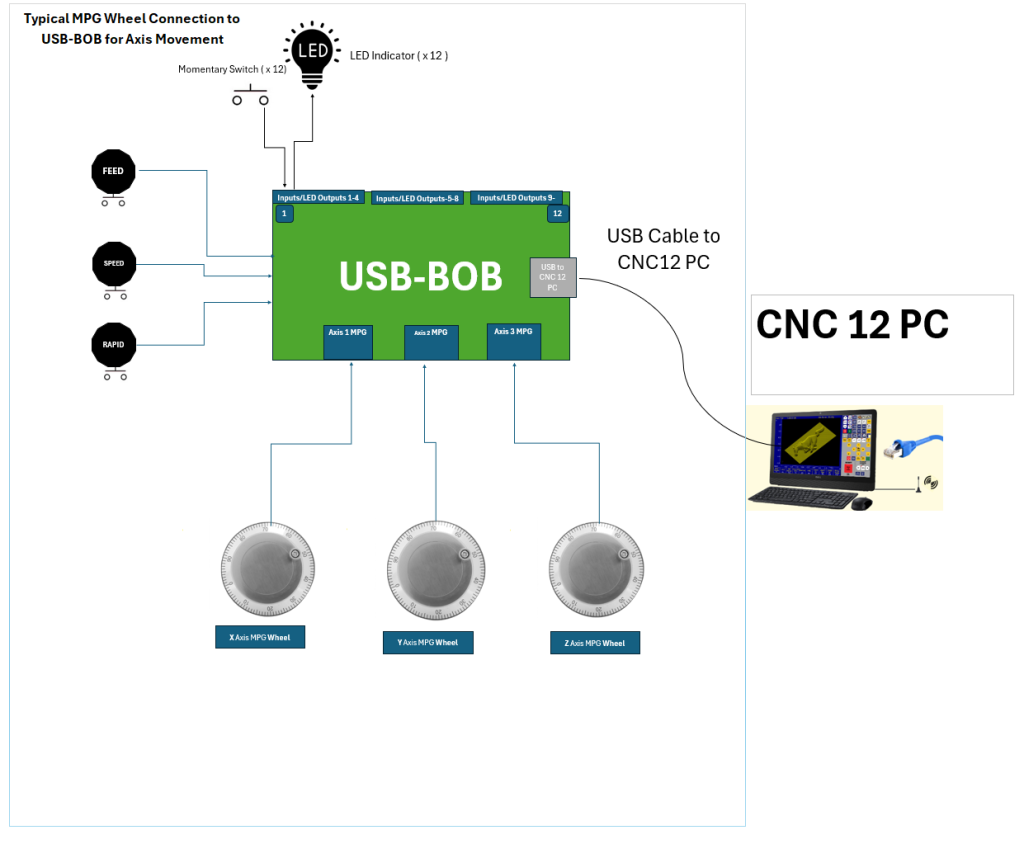

Typical MPG Wheel Connections to USB-BOB for Axis Movement
MPG Wheels are connected to the USB-BOB in the typical configuration.
One MPG per Axis can be connected
one MPG wheel can be connected in conjunction with an axis selector switch.
- Up to 3 MPG wheels can be connected to the USB-BOB for Axis Control
- One MPG wheel can be connected to the USB-BOB and add axis selection button inputs
