Components used in this build

Centroid CNC

This link will take you to the Centroid CNC Order Page

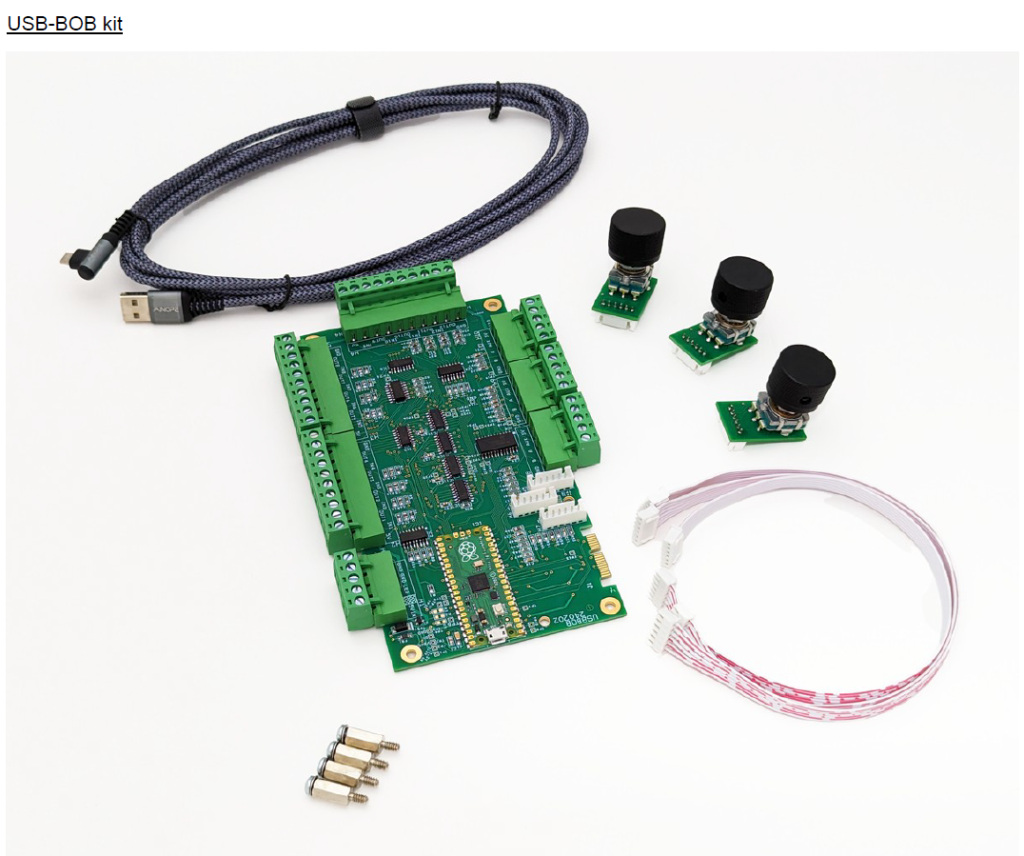

USB-BOB Kit

Amazon

The links below will take you to the Amazon page

Joystick Control and Push Button Components

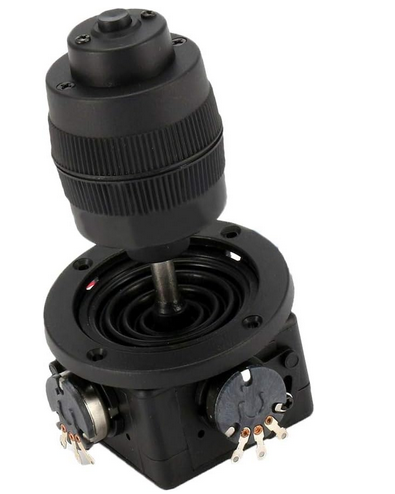

4 Axis Joystick

4 Axis Joystick

Red Illuminated Momentary Push Button 12VDC

Green Illuminated 12VDC Momentary Push Button

Green Illuminated 12VDC Momentary Push Button

Yellow Illuminated 12VDC Momentary Push Button

White Illuminated 12VDC Momentary Push Button

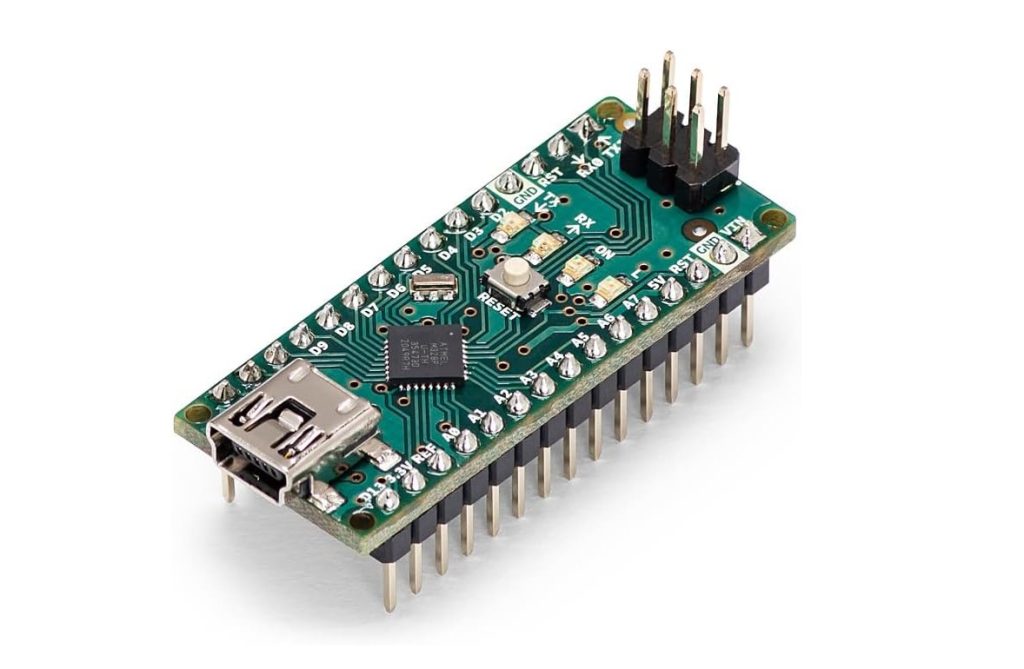

Arduino Nano 5V

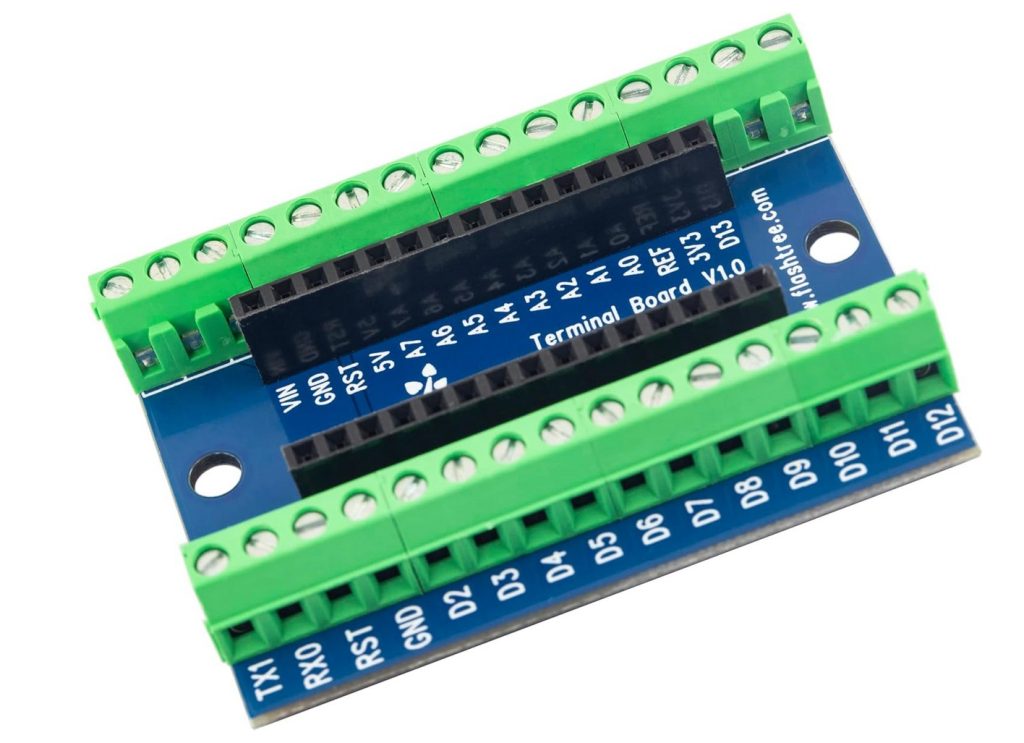

Arduino Nano Breakout Board

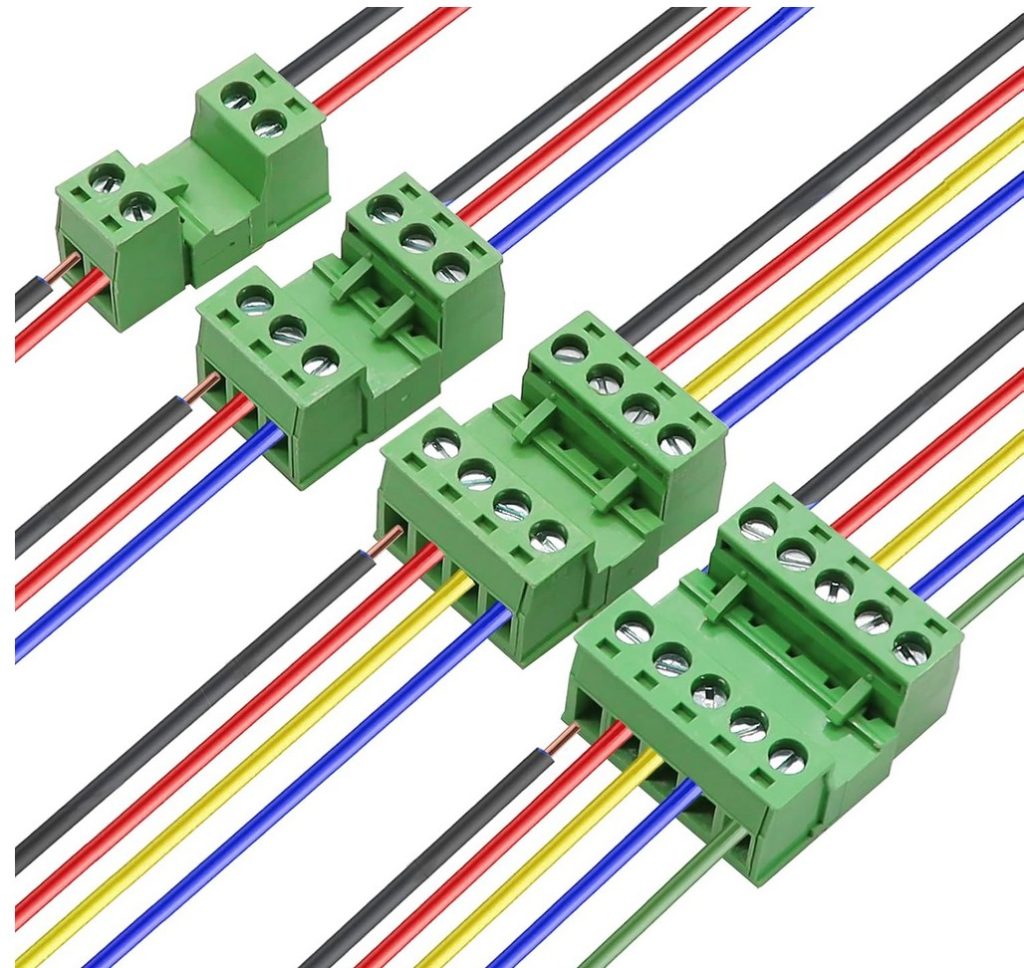

Connector Block Kit

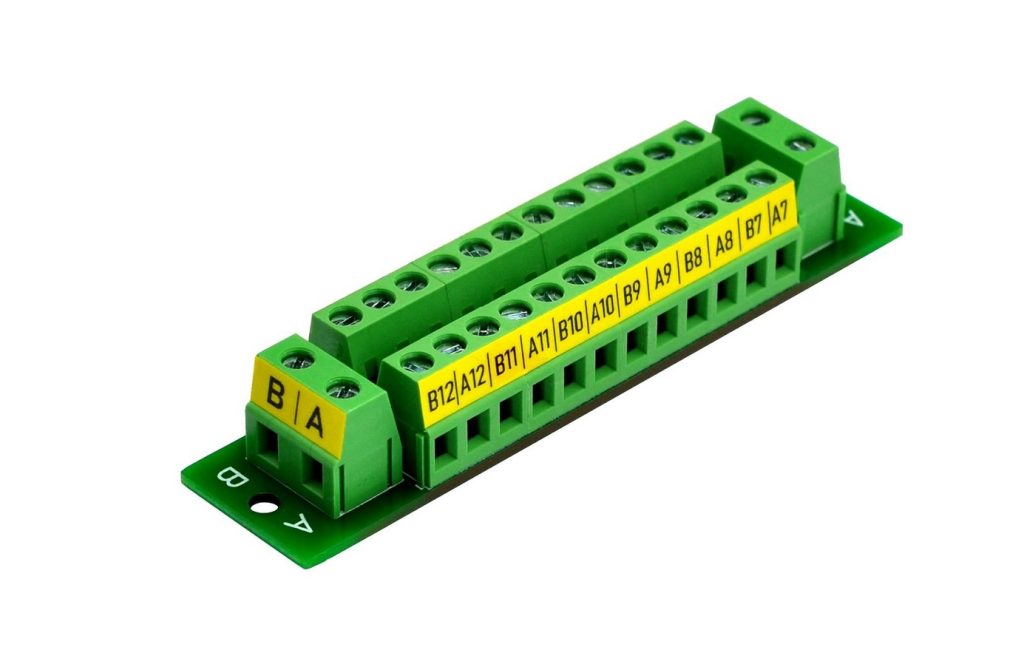

Distribution Terminal Block Kit

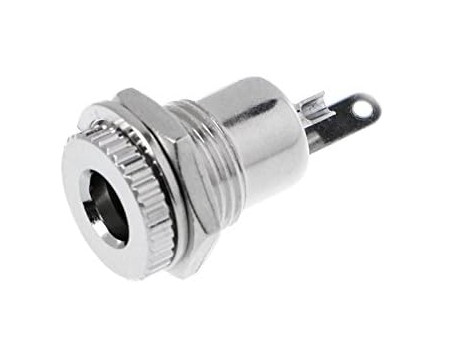

DC Panel Connector

DC Extension Cables

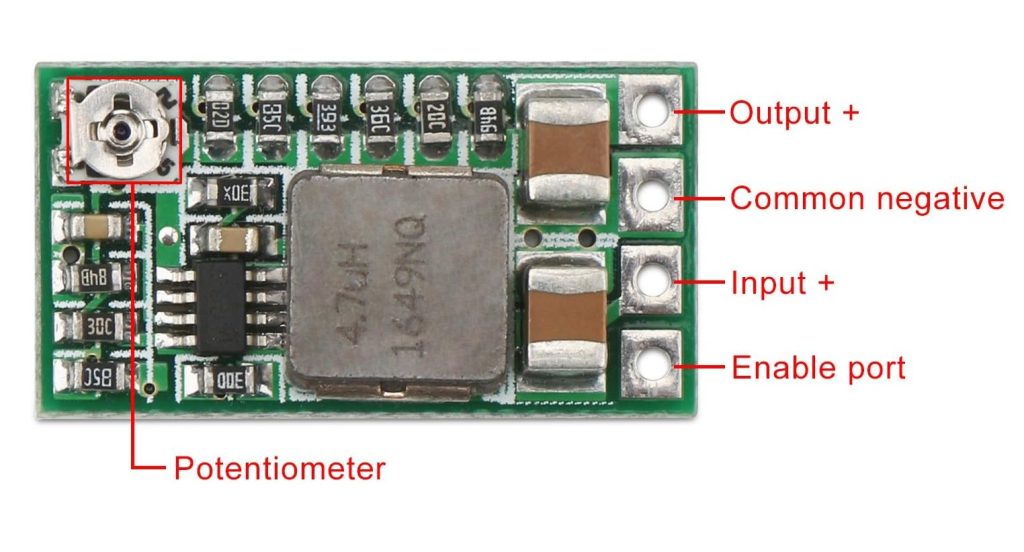

DC-DC Converter/Regulator for Arduino Nano

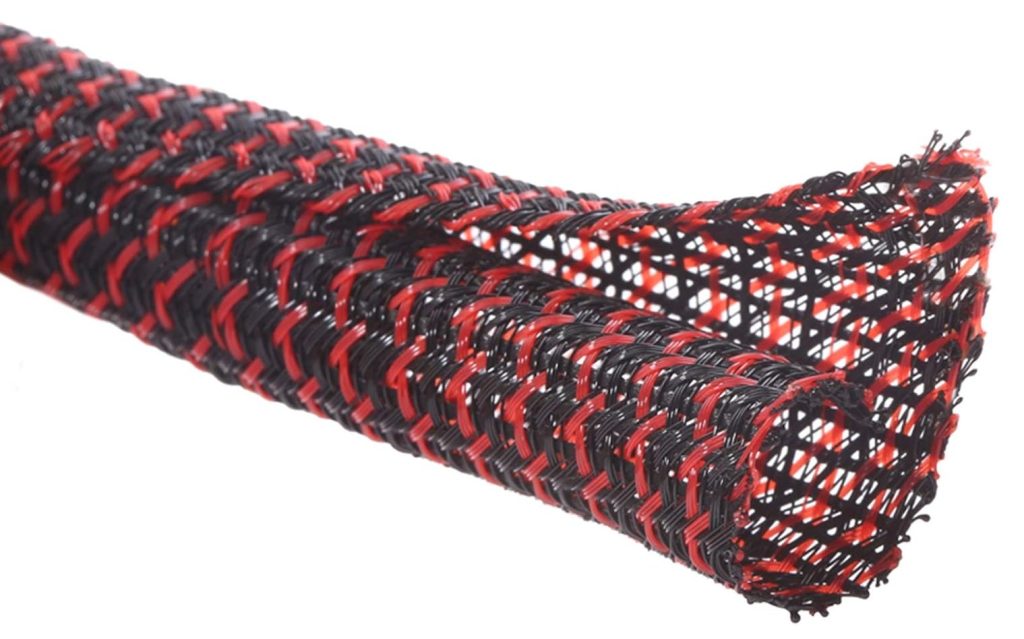

Cable Split Loom Protector ( for USB Cable and DC Power Cable )

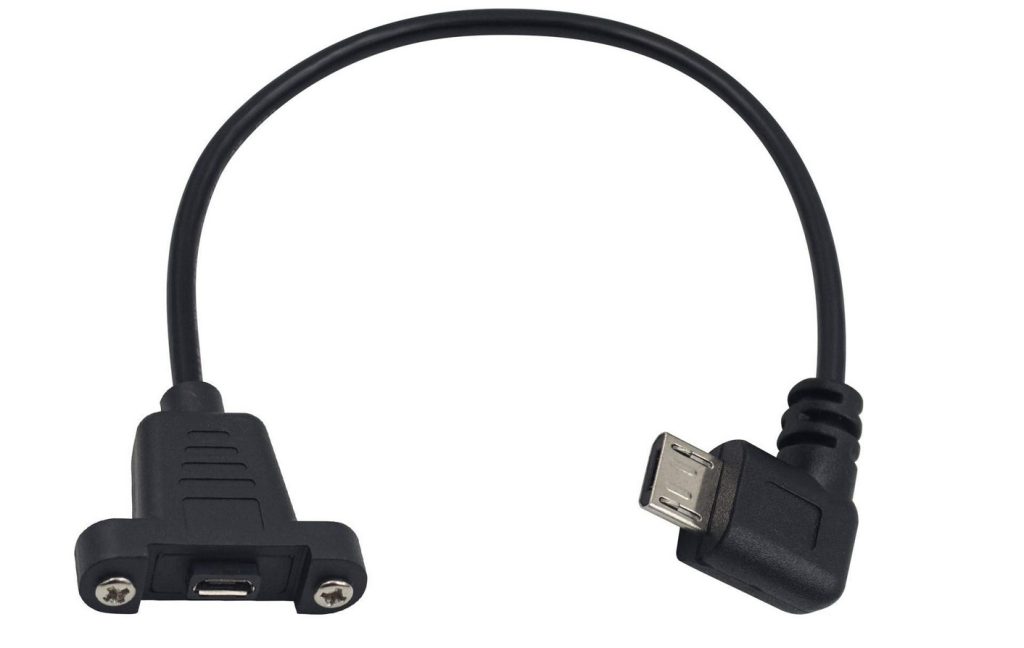

Micro USB Female panel connector with right angle connector for USB-BOB

Mini USB Female panel connector with right angle connector for Arduino Nano

Mini USB Female panel connector with Left angle connector for Arduino Nano

Additional Components for OLED Display and Jog Control

Jog Selection Rotary Encoder

1.54″ Monochrome I2C OLED Display

Arduino Nano ( dedicated to jog and OLED functions )

Arduino Nano Breakout Board

0.96″ OLED I2C Display

Tools and Hardware

Heat Insert Kit

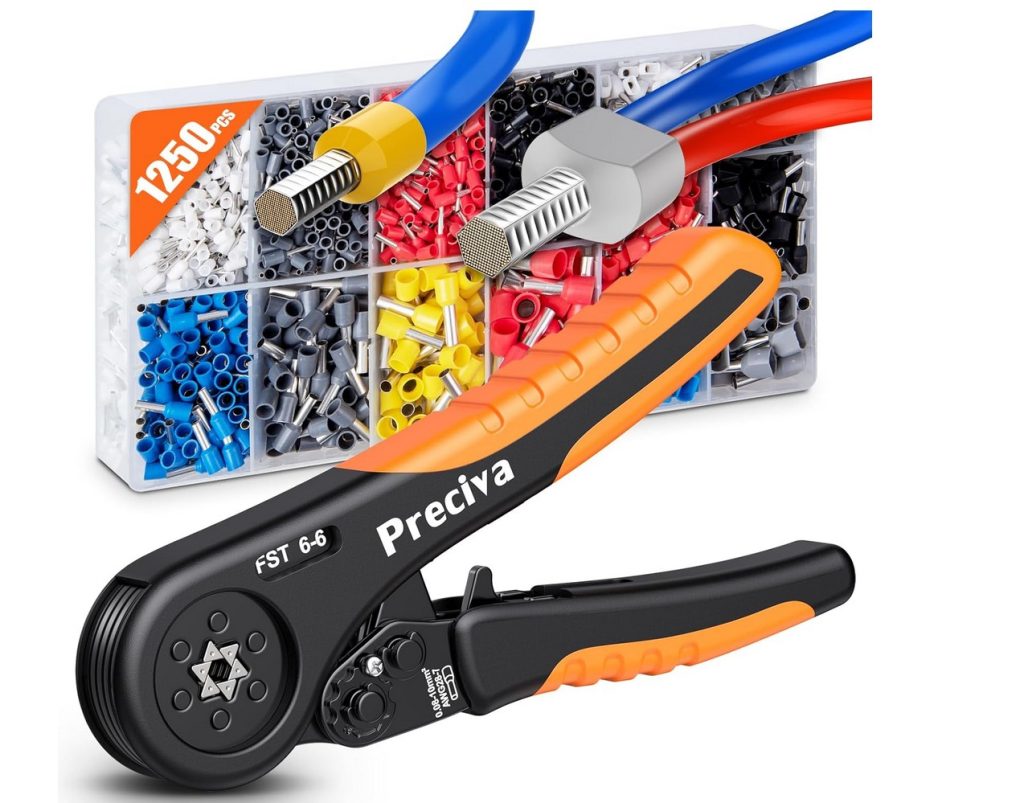

Ferrule Crimping Kit

IVCNC.COM – Coming Soon

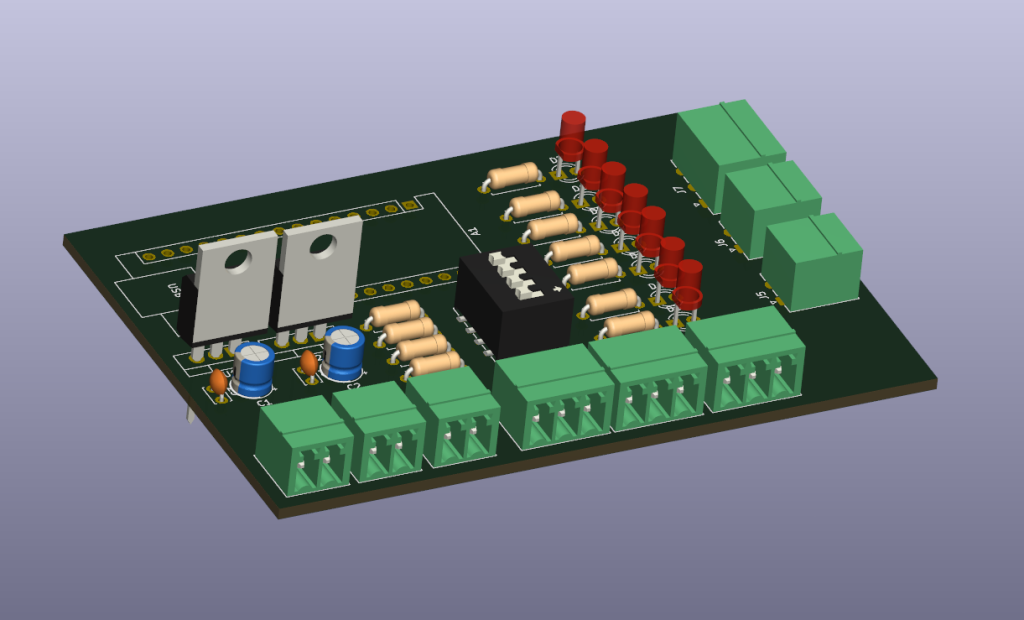

Joystick to USB-BOB Interface – Available to order Estimated July 1, 2025. Estimated Ship Date 7/21/2025

  • 3 Axis Analog 0-5VDC Joystick to Quadrature A-B Output
  • Pre-programmed Arduino Micro-Controller
  • 12-30VDC Input
  • 12 VDC 1.5A Regulated Output – For control panel accessories
  • 5 VDC 1.0A Regulated Output – For control panel accessories and USB-BOB ( if required )
  • Mounting Options Available
    • DIN Rail
    • USB-BOB Stacking Kit

Pre-Order Available July 1-2025
